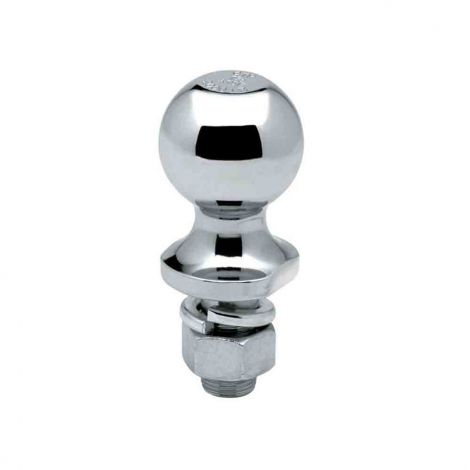

Class I (2,000 lb.) Chrome Trailer Hitch Ball - 1-7/8 Inch with 3/4" Shank (Replaced part #10)
Product Details
This trailer hitch ball features a ball capacity of 2,000 lbs. It is able to tow most utility trailers, boat trailers, campers, smaller livestock trailers and some recreational vehicle haulers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). As with any trailer, be sure that your towing equipment is capable of handling the load before hitching up. This trailer ball also features a 3/4" shank diameter, 0" of rise and a nickel-chrome finish to protect against corrosion and wear.
- Hitch Ball Comes With Wrench flats!
- Fits 1-7/8" couplers and accepts up to 2,000 lbs. GTW
- Constructed from high-strength, hot-forged steel
- Zinc-plated hex nut and helical lock washer for secure mounting
- Features fine threads for superior holding strength
Note: The mounting platform must be at least 3/8" thick, and the hole size must not be more than 1/16" larger in diameter than the threaded shank
Specifications
Ball Diameter | 1-7/8 inch |
---|---|
Capacity | 2,000 lbs. |
Finish | Chrome |
Shank Diameter | 3/4 inch |
Shank Length | 1-9/16 inch |
Thickness Range | 3/8 inch to 3/4 inch |
Torque Nut To | 160 lb-ft |
Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
