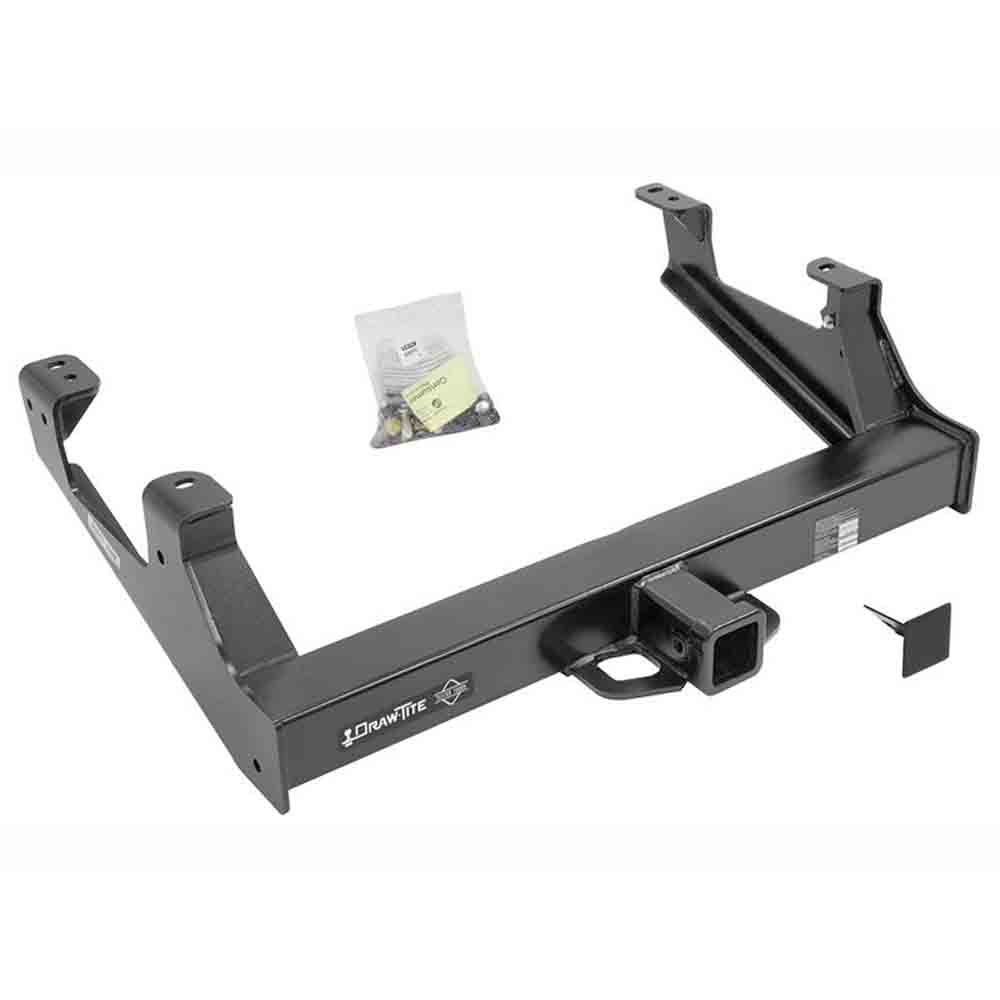

RECEIVER - DRAW-TITE 2 1/2IN

Class V hitches are very similar to Class III & IV hitches except for the weight ratings. Class V hitches are Weight Carrying (WC) and Weight Distributing (WD) hitches. Class V hitches used as Weight Carrying are rated up to 20,000 lbs. Gross Trailer Weight (WCGTW) with a maximum trailer Tongue Weight (WCTW) of 2,700 lbs.

Hitches that are used for Weight Distributing are rated up to 20,000 lbs. Gross Trailer Weight (WDGTW) with a maximum trailer Tongue Weight (WDTW) of 2,700 lbs. Please see the Specification tab above for the weight ratings of this hitch.

This style of hitch uses a 2-1/2" square receiver opening. The use of a ball mount and hitch ball of the same rating or higher is required. To use the weight distribution side of the hitch a weight distribution system is required. Class V hitches attach to the vehicle frame only.

Always consult your owner's manual for vehicle rating.

• Drilling required
• Requires removal of factory hitch if equipped
• Hitch crosstube is visible beneath bumper
• Minor heat shield modification may be required
