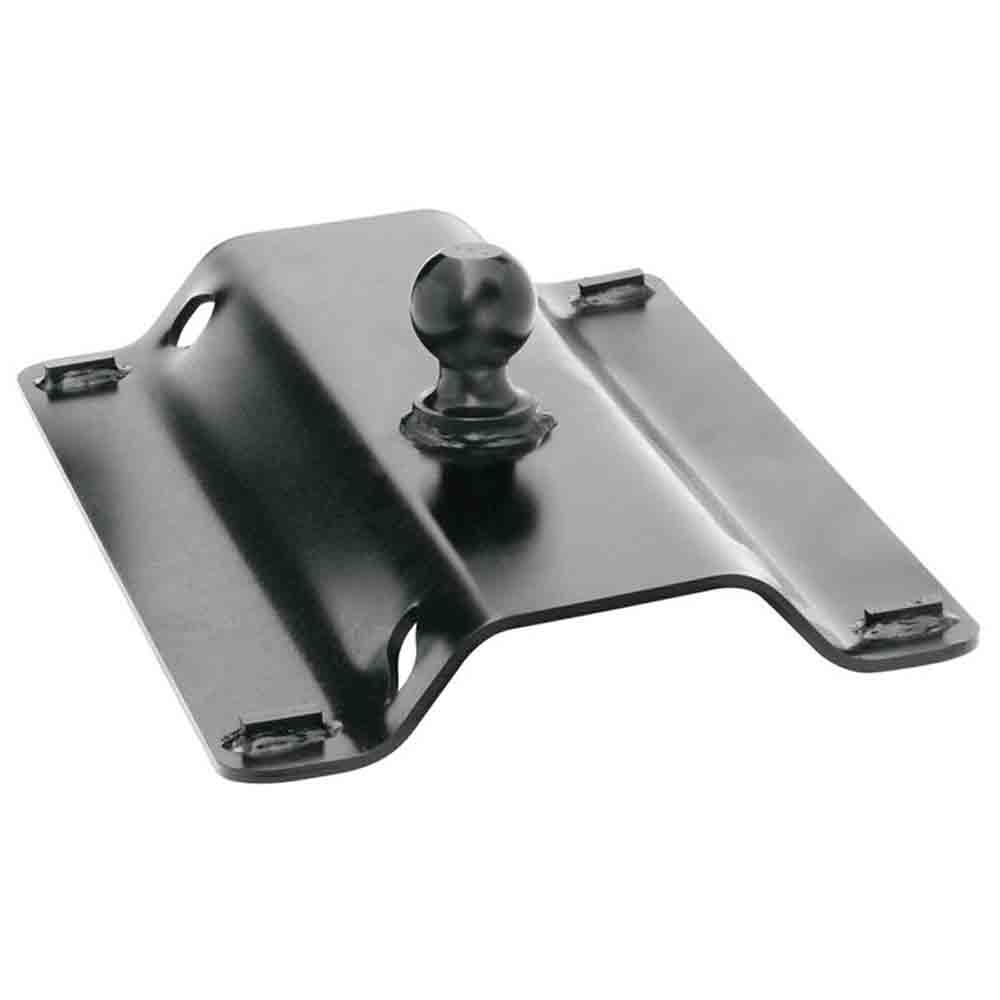

Reese Fifth Wheel Gooseneck Hitch Plate (Requires Industry Standard Fifth Wheel Rails) - 25K Tow Capacity

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630
Need help with installation? Locate installers near me
Reese Fifth Wheel Gooseneck Hitch Plate (Requires Industry Standard Fifth Wheel Rails)
Product Details
This Gooseneck Hitch works in conjunction with your Reese Fifth Wheel. This design eliminates the need to cut the truck bed and utilizes the same base rails as standard fifth wheel hitches.
You can follow this link to order your rails Rail Kit #30035.
To make your installation even easier, you may want to purchase Custom Fit Installation Brackets.
- Easy installation and removal allows for full access to truck bed
- Allows full use of pick-up bed area when hauling cargo
- 2 5/16 inch heat-treated ball is offset 2 inches from center
- Gooseneck plate is reversible to adjust ball placment fore and aft
- Build-in safety chain brackets
- Tab width dimensions - 10" Side to side (center to center) 21 15/16" Front to back (center to center)
- Includes 2-5/16 inch heat-treated ball, attaching pins and clips
- 25K lb. Tow Capacity
- 6,250 lb. Vertical Load
Specifications
Brand | Reese |
---|---|
Gross Towing Weight (WC) | 25,000 lbs. |
Fits | 5th Wheel Rails (ISR) |
Vertical Load | 6,250 lbs. |
Warranty | Limited 10 Year Warranty |
Finish | Black Powder Coat |
Material | Steel |
Instructions
Review (1)
-
Posted on
Pins holes did not line up....Pins holes did not line up.
