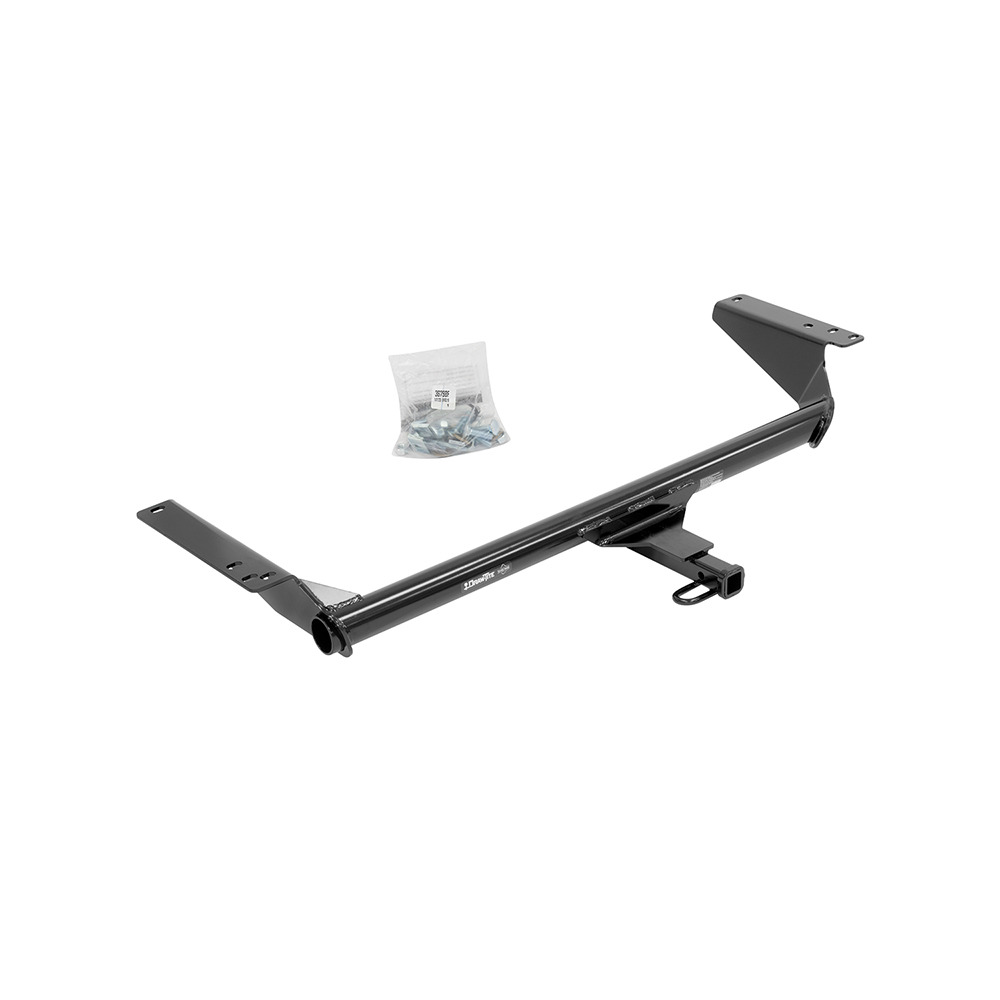

Draw-Tite Class II, 1-1/4 inch Trailer Hitch Receiver fits Select Chrysler Pacifica (Except Hybrid Models), Chrysler Voyager

Name: Rigid Hitch
Address: 3301 Burnsville Pkwy, Burnsville, MN, 55337, US
Telephone: 800-624-7630
Price range: $$

Draw-Tite

SKU

36798

List Price: $539.95

$ 235.19

In-Stock

Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder

Have a Question ? Talk to a specialist- Live chat or call 800-624-7630

Need help with installation? Locate installers near me

Draw-Tite 36798 Class II, 1-1/4 inch Trailer Hitch Receiver Fits

2017-2024 Chrysler Pacifica All Models Except Hybrid
2020-2024 Chrysler Voyager All Models

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Details

Class II hitches are Weight Carrying (WC) hitches rated up to 3,500 lbs. Gross Trailer Weight (GTW) with a maximum trailer Tongue Weight (TW) of 300 lbs. This style of hitch typically uses a 1-1/4" square receiver opening. The use of a drawbar and hitch ball of the same rating or higher is required. A drawbar, pin, clip and installation hardware are included. Class II hitches normally attach to the vehicle frame and or bumper. Always consult your owner's manual for vehicle rating.

No drilling is required for installation
Heat shield trimming is required
Underbody panel trimming is required
Will NOT fit Hybrid models

Optional Accessories

ZCI Zero Contact Universal Modulite KIt Wiring Light Kit P/N 119251
Hardwire ModuLite HD Protector Trailer Light Power Module With Wiring Kit Multi-fit Wiring Harness P/N 119148

Specifications

Specifications
Brand	Draw-Tite
Receiver Size	1-1/4 inch
Gross Towing Weight (WC)	3,500 lbs.
Tongue Weight	300 lbs.
Hitch Class	Class II
Finish	Black Powder Coat
Installation Time	45 minutes
Warranty	Limited Lifetime Warranty

Instructions

CLICK HERE

Compatibility

Year	Make	Model	Category	Description
2025	Chrysler	Voyager	Rear Mounted Receivers	All Models
2025	Chrysler	Pacifica	Rear Mounted Receivers	All, Except Hybrid Models
2024	Chrysler	Voyager	Rear Mounted Receivers	All Models
2024	Chrysler	Pacifica	Rear Mounted Receivers	All, Except Hybrid Models
2023	Chrysler	Voyager	Rear Mounted Receivers	All Models
2023	Chrysler	Pacifica	Rear Mounted Receivers	All, Except Hybrid Models
2022	Chrysler	Voyager	Rear Mounted Receivers	All Models
2022	Chrysler	Pacifica	Rear Mounted Receivers	All, Except Hybrid Models
2021	Chrysler	Voyager	Rear Mounted Receivers	All Models
2021	Chrysler	Pacifica	Rear Mounted Receivers	All, Except Hybrid Models
2020	Chrysler	Voyager	Rear Mounted Receivers	All Models
2020	Chrysler	Pacifica	Rear Mounted Receivers	All, Except Hybrid Models
2019	Chrysler	Pacifica	Rear Mounted Receivers	All, Except Hybrid Models
2018	Chrysler	Pacifica	Rear Mounted Receivers	All, Except Hybrid Models
2017	Chrysler	Pacifica	Rear Mounted Receivers	All, Except Hybrid Models
