Hub Assembly For 2,200 Lb Axle With 1-1/16" Straight Spindles - 5-Bolt On 4-1/2" Bolt Circle - With EZ Lube Dust Cap
Have a Question ? Talk to a specialist- Live chat or call 800-624-7630
Need help with installation? Locate installers near me

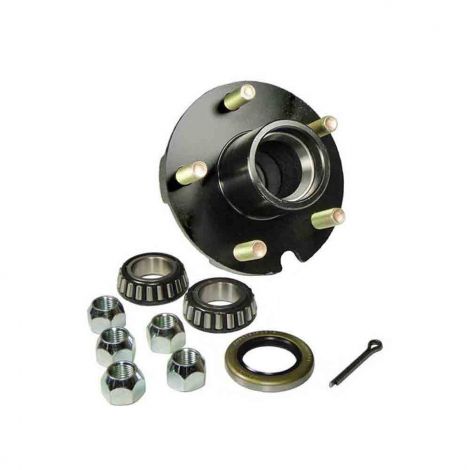

Trailer Hub for 1-1/16" Straight Spindles for a 2,200lb Axle. Sold as Single with a 1,250lb Capacity per Hub. Complete assembly with Bearings, Seals, EZ lube dust cap, Cotter Pin, Rubber Plug and Lug Nuts.
Product Details
Hub has 5-bolt pattern on 4-1/2" circle for a 2,200lb axle with hub capacity of 1,250lbs. Includes pressed in bearing races with a pilot diameter 2.5", flange diameter 5.56" and measures 4-1/4" tall.
(2) L-44649 (1-1/16" I.D) Inner and Outer Bearings, (1) SL-150-1 (1.50" I.D.) and SL-122 (1.249" I.D.) Grease Seals, (1) SCP-100 Cotter Pin, (1) EZ Lube Dust Cap, (1) Rubber Plug, (5) 1/2"-20 STN-506 Lug Nuts. The reason for two grease seals in this assembly is because 1-1/16" spindles will use one of these two seals. NOTE: This kit does not include the castle nut! You must use your existing nut for installation.
* Grease seal may vary in construction (metal ring or rubber ring) - dimensions are the same and either version will work equally well.
Specifications
| Brand | TRP |
|---|
