3,500 lb Drop Axle Assembly w/ Electric Brakes & 5-Bolt on 4-1/2" Hub/drums - 64 Inch Hub Face

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Details

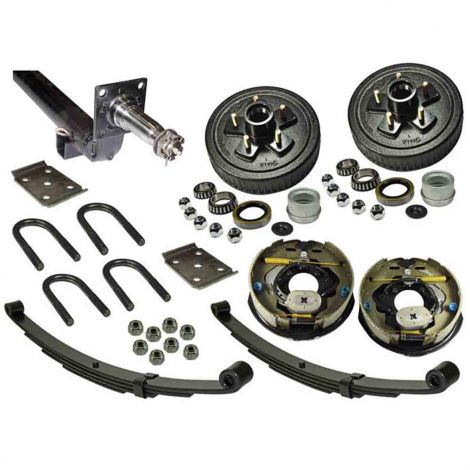

3,500 lb., 4" drop trailer axle assembly includes axle tube with spindles, castle nuts and cotter pins, electric brakes, cast iron 5 on 4-1/2 inch hub/drums with bearings, seals, grease caps and lug nuts, double eye leaf springs with U-bolts, nuts and tie plates. Axle tube is 2-3/8" diameter x 3/16" wall round tubing. Axle is supplied with spring seats attached for mounting springs in the underslung (springs under axle) position. Axles are manufactured with a slight camber (arch) and must be mounted with the arch at the top of the axle.

Axles may be special ordered with hub face widths from 24 to 94 inches. Please contact customer service.
Includes (2) 5 on 4-1/2 inch studded hub/drums with bearings, seals and grease caps and 10 inch electric brakes
Includes double eye springs with U-bolts, tie plates and lock nuts
1-3/8 inch x 1-1/16 inch tapered spindles with castle nuts and cotter pins
Used on boat trailers, tent campers, utility and snowmobile trailers

Specifications

Specifications
Brand	Lippert
Capacity	3,500 lbs.
Mount Width	48 inch
Overall Width	66-1/2 inch
Spring Dimensions	27 inch (eye to eye) x 1 3/4 inch
Spring Seats	Attached
Width At Hub Face	64 inch
